Reverse Engineering

With our new coordinate measuring machine (CMM) from FARO^® Technologies Inc. we can provide you with completely dimensioned 2D drawings and 3D models in your choice of file formats:

2D: .slddrw, AutoCad.dwg, dxf or .jpg, .pdf, .tif...
3D: .sldprt, .iges, parasolid, ProE.prt, STEP, ACIS

If you would like us to reverse engineer, gears, shafts, or other machine parts please choose from the options below:

Send us your Gear Samples and/or Broken Gears

Click on any one of the options below:

Take a photo of your parts and upload them to our site for a quick estimate. This is the fastest way to get a response. Usually within an hour.

Email your photos to us. For a quicker response time use the upload option.

Ship the parts to us to get an accurate price and production time.

Always send us every spec or detail you know about the part or parts.

How it works:

We will take your part...

Faro arm

Measure it with our precision inspection tools including our FARO^® Platinum Arm^TM...

Faro Arm

...and create a fully dimensioned drawing using
the latest version of Solidworks.^®

You receive the information in the form of
drawing files and solid model files in many formats.

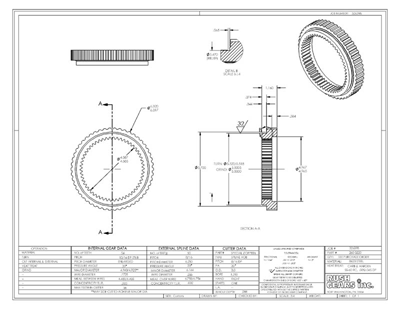

2D drawing

- 2D Manufacturing Drawing -

Plus, if you request it, we will have your material tested
for hardness and composition (requires some destruction
of your material). Contact us for pricing.
Request for quote form

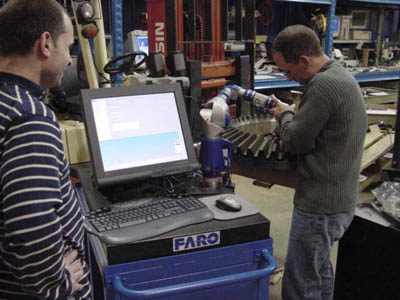

Engineers working on a bevel gear

Engineers Stewart & Rich reverse engineer a bevel gear.
The portability of the Faro Arm allows us to measure
parts just about anywhere in the building.

Click here to get a quote.

3d solid model

- 3D Model -
